HVAC, Mechanical, Electrical and Piping

Designing Systems That Power Efficiency and Safety

The powerhouse of the facility, our electrical engineering design focuses on the right capacity estimation, ideal safety protocols and meticulous planning so to provide uninterrupted power with efficient systems and controls.

Compliances

Our comprehensive services cover every aspect of your needs, ensuring reliable power distribution, advanced control and monitoring capabilities, and precise customization.

  • Panels IEC 61439
  • Cable IEC 60502
  • UPS IEC 62040-3
  • RMU IEC 60298
  • Transformer IEC 60076
  • Electrical
    Installation
    IEC 61936
  • Lightning
    Protection
    IEC 62305
  • Earthing
    standard
    BS7430
  • BMS & EMS ISA 99/62443
  • Fire Alarm
    System
    NFPA 72
  • Public
    Address
    NFPA-10
  • D & I ANSI/TIA-942-B

Safety in Design

Our comprehensive services cover every aspect of your needs, ensuring reliable power distribution, advanced control and monitoring capabilities, and precise customization.

1

Fire suppression system provide in LT panels. Rubber mat shall be considered for each panel

2

All incomer of distribution boards should be equipped with MCB/MCCB + RCCB or RCBO to arrest fault if any.

3

Lightning protection shall be installed based on the risk assessment. FRLS Cables shall be used.

4

Fire alarm system shall be designed and installed in the facility.

5

Main panel shall be equipped with surge protection device (SPD).

6

ACB breakers are provided with LSIG protection(O/L,S/C,E/F) MCCB are provided with Microprocessor based/TMD based.

7

Hazardous areas will have flameproof components. Every equipment will have double earthing.

8

Emergency escape route shall be powered through emergency light along with exit signages.

9

All incomer shall have mushroom type push button in case of an emergency.

10

All switchgear (ACB/MCCB) shall have LOTO provision.

Designing the Perfect Environment for Innovation

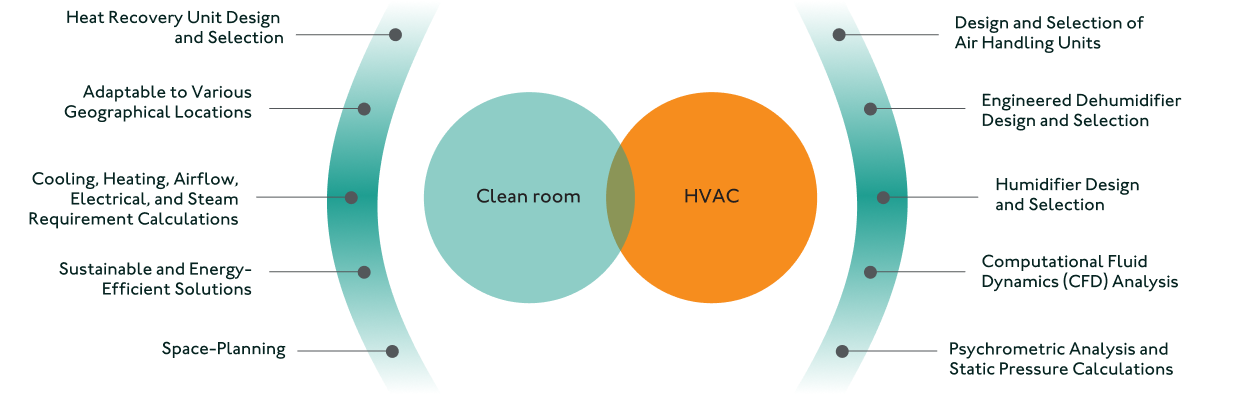

HVAC systems account for roughly one-third to two-thirds of a pharma facility's energy consumption. Efficient HVAC design is crucial for both product purity and cost savings. Our Subject Matter Experts (SMEs) specialize in validating these critical systems, ensuring they operate optimally.

Compliances

Our comprehensive services cover every aspect of your needs, ensuring reliable power distribution, advanced control and monitoring capabilities, and precise customization.

Safety In Design

Our comprehensive services cover every aspect of your needs, ensuring reliable power distribution, advanced control and monitoring capabilities, and precise customization.

1

BIBO Units in Potent facilities.

2

Risk Assessment of HVAC design.

3

Standby units for temperature /RH sensitive areas.

4

Dehumidifier unit for Low RH areas.

5

Interlock between AHU blower and AHU cabinet doors.

6

Smoke ventilation system for fire emergencies.

7

Interlock between fire dampers and supply air fan.

8

Bleed air exhausted through HEPA filters.

Designing for Efficiency, Delivering for Sustainability

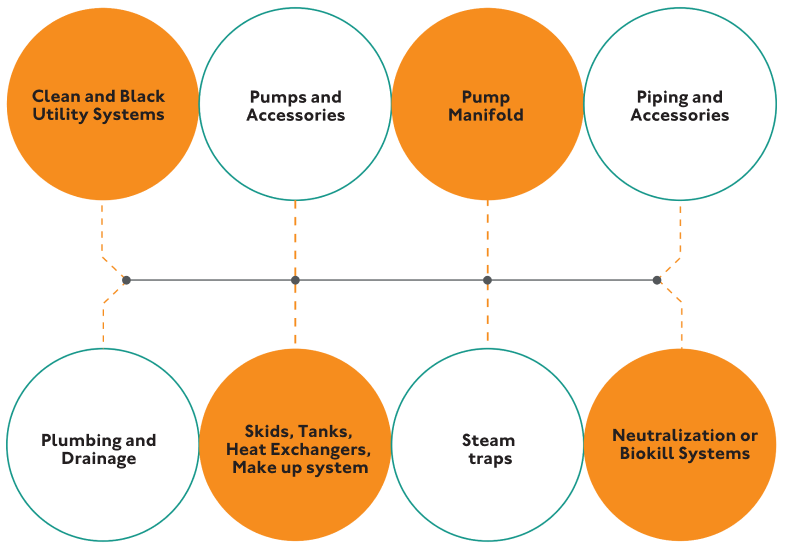

Our mechanical system designs prioritize efficiency, safety, and sustainability. We focus on reducing operational costs without compromising quality or specifications.

Compliances

Our comprehensive services cover every aspect of your needs, ensuring reliable power distribution, advanced control and monitoring capabilities, and precise customization.

  • Code for Pressure Piping
  • Standard for pipe flanges and flange fittings
  • Design Standard for Valves
  • Dimensional standard for stainless steel Pipe
  • Pipeline Identification-Colour CodeG
  • Specification for Seamless Carbon Steel Pipes
  • Specification for ERW Carbon Steel Pipes
  • Specification for Stainless Steel Sanitary Tubing
  • Dimensional Standard for tubes & fittings

Documentation

Comprehensive documentation forms the backbone of every successful project. With precise layouts, detailed specifications, and meticulously crafted reports, we ensure every aspect of your facility is planned with clarity and accuracy. Our designs translate vision into actionable frameworks, ensuring seamless integration and operation.

1

Point of Use Layout.

2

Utility Equipment Location Layout.

3

P&ID and Isometric Drawings.

4

Utility Cutout Layout.

5

Pipe and Piperack Layout.

6

Specifications.

7

URS & Technical Data Sheets.

8

Utility BOQ.

9

Utility Consumption Sheet.

10

Basis of Design Report.
